Ultimate Guide to Leveling a Pier and Beam Foundation in New Orleans

In New Orleans, unique soil conditions, high humidity, and frequent flooding present specific challenges to homeowners, especially when it comes to foundation stability. Pier and beam foundations, which were popular in older homes due to their elevated design and easy access for maintenance, are particularly vulnerable to these environmental conditions. Foundation leveling can be essential to maintaining the structural integrity of these homes, and understanding the ins and outs of the process can save you from potential headaches and costly repairs down the line. This guide will walk you through everything you need to know about leveling a pier and beam foundation in New Orleans.

1. Understanding Pier and Beam Foundations

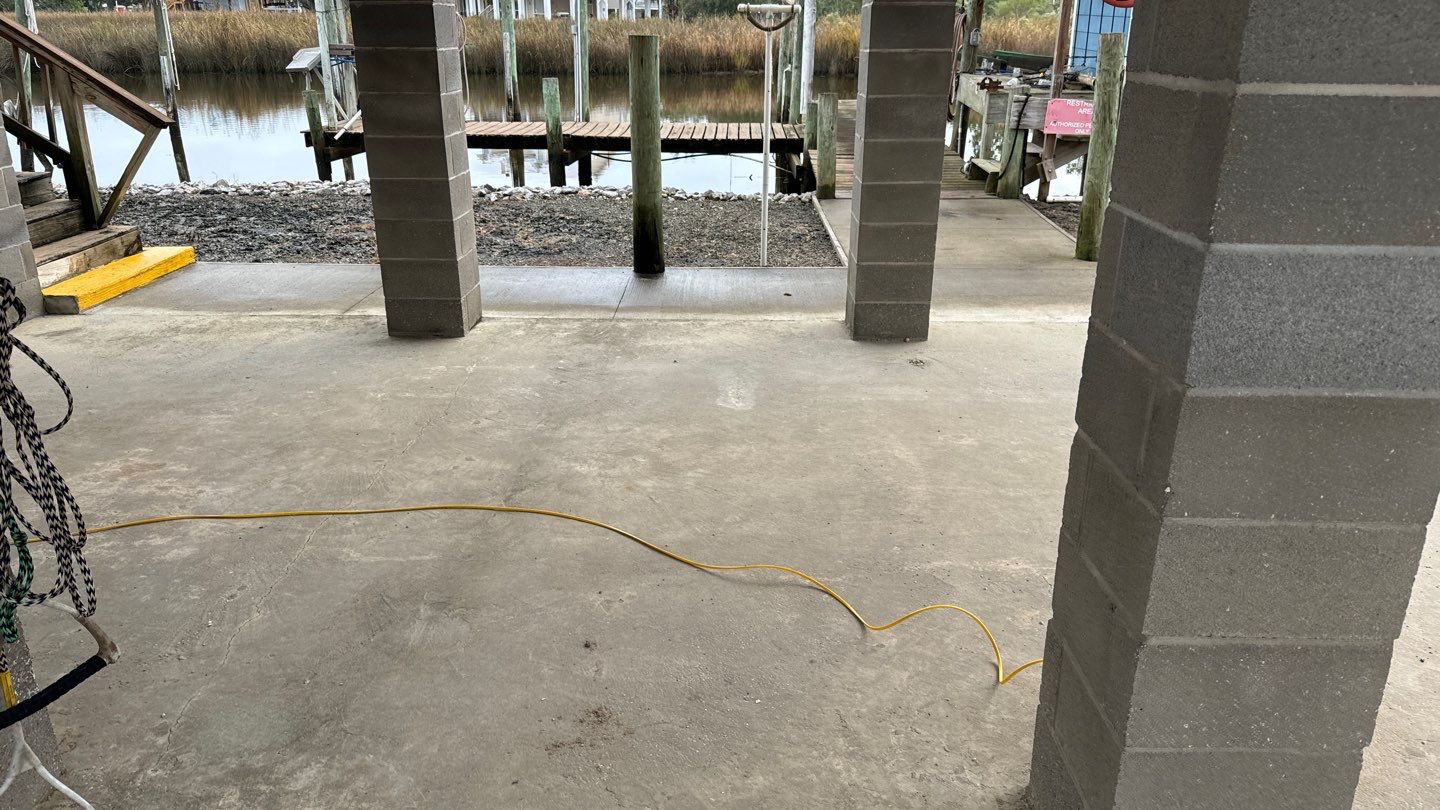

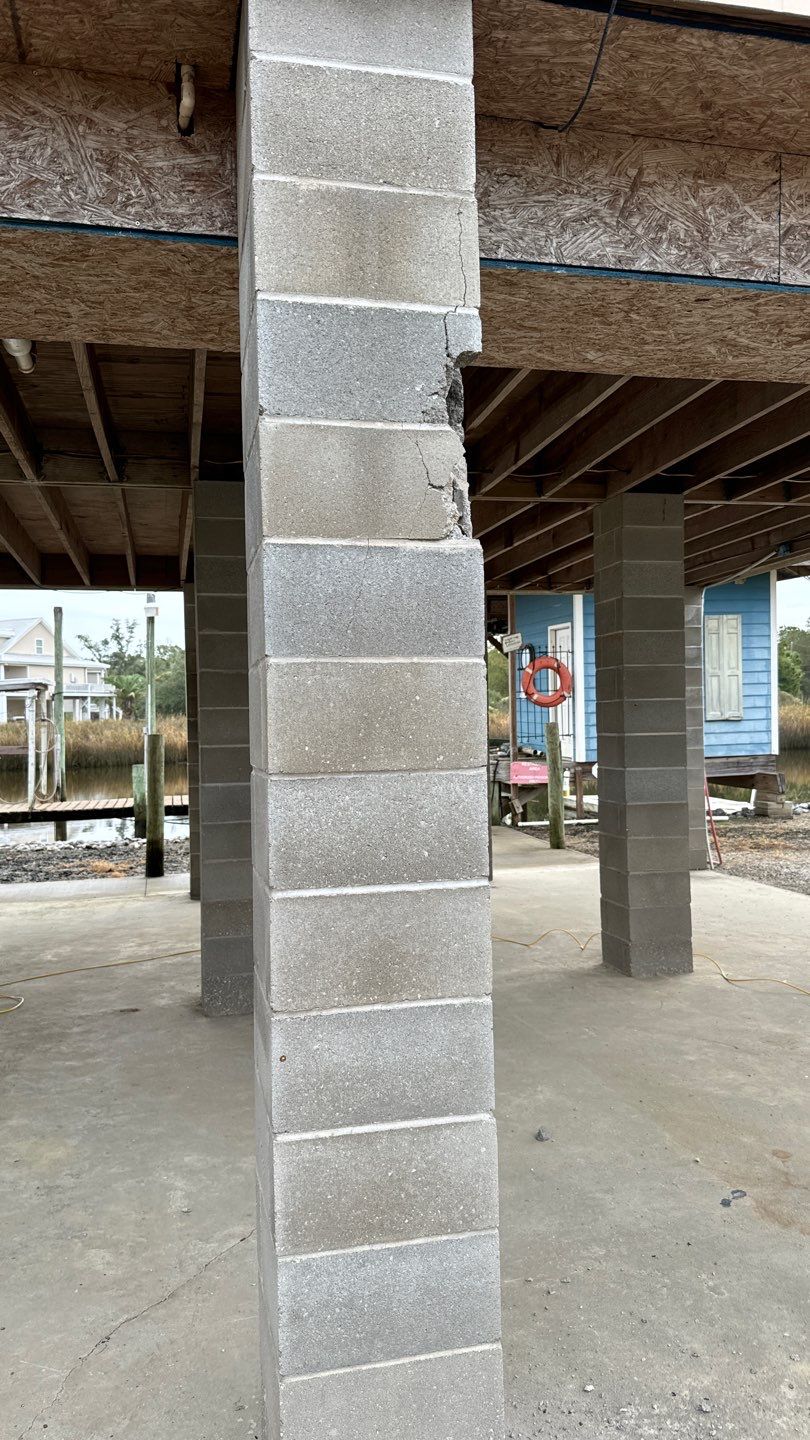

A pier and beam foundation consists of concrete or brick piers (vertical supports) set into the ground that hold up the wooden beams. These beams, in turn, support the floor joists and the weight of the house. This design creates a crawl space under the home, allowing for easy access to plumbing, electrical work, and ductwork.

Advantages of Pier and Beam Foundations

• Access to Crawl Space: Easy maintenance and repairs for utilities under the house.
• Resistance to Flooding: The elevated design helps prevent floodwaters from entering the living space.
• Improved Stability on Shifting Soils: Pier and beam foundations can better adapt to shifting soil than slab foundations.

Common Problems in New Orleans

Due to New Orleans’ clay-heavy soil, high moisture levels, and high water table, pier and beam foundations are particularly susceptible to:

• Shifting and Settling: The soil in New Orleans can shift, causing the piers to settle unevenly.
• Rot and Decay: High humidity and water exposure can lead to wood rot in beams and joists.
• Insect Infestation: Termites and other pests can weaken wooden components, compromising the foundation’s integrity.

2. Signs Your Pier and Beam Foundation Needs Leveling

It’s essential to recognize early signs of foundation issues to prevent further damage. Here are some common indicators that your pier and beam foundation might need leveling:

• Uneven or Sagging Floors: One of the most noticeable signs is a dip or slope in the floor.
• Doors and Windows Sticking: If doors and windows start sticking or won’t close properly, it could indicate shifting in the foundation.
• Gaps Between Walls and Floors: Gaps, especially around baseboards, can signal structural issues.
• Cracks in Walls and Ceilings: Diagonal or stair-step cracks are a red flag that should be assessed by a professional.
• Water Pooling or Excess Moisture: If the crawl space has standing water, mold growth, or a musty smell, it could indicate drainage issues affecting your foundation.

3. Causes of Foundation Issues in New Orleans

New Orleans’ climate and soil conditions can cause specific problems for pier and beam foundations:

• Expansive Clay Soils: Clay soil expands and contracts with moisture, causing the foundation to shift over time.
• High Water Table: With water tables close to the surface, there’s a higher risk of water-related foundation issues.
• Frequent Flooding: The city’s low-lying geography makes it susceptible to flooding, which can erode the soil supporting your foundation.
• High Humidity: Moisture can accelerate wood rot and make the foundation more prone to settling.

4. The Process of Leveling a Pier and Beam Foundation

Step 1: Initial Assessment

A professional foundation contractor will inspect your property, assessing the crawl space, piers, beams, and floor joists to determine the extent of damage or settling.

Step 2: Preparation and Access

To begin the leveling process, the contractor will clear out any obstacles and set up access points around the home, typically in the crawl space, for easy access.

Step 3: Replacing or Reinforcing Damaged Components

In some cases, deteriorated beams, joists, or piers will need replacement or reinforcement before leveling can begin.

Step 4: Lifting and Leveling

Using hydraulic jacks, the contractor will carefully lift the affected areas of the house back to a level position. They may install additional piers or shims to provide extra support.

Step 5: Sealing and Moisture Control

Once leveled, the crawl space should be sealed, and moisture control measures such as vapor barriers, sump pumps, or drainage systems may be recommended to prevent future issues.

5. DIY vs. Professional Leveling: What You Need to Know

While minor leveling adjustments (like adding shims) can sometimes be done by skilled homeowners, most foundation repairs should be left to professionals, especially in a complex environment like New Orleans. Improper leveling can lead to further damage, making the process even more costly.

6. Cost of Pier and Beam Foundation Leveling in New Orleans

The cost of leveling a pier and beam foundation in New Orleans depends on factors like:

• Extent of Damage: Severe damage to beams, joists, or piers will require more work.
• Foundation Size: Larger homes with extensive crawl spaces will typically cost more to repair.
• Moisture Control Measures: Installing drainage systems, vapor barriers, or sump pumps will add to the cost.
• Permits and Regulations: Some repairs may require permits and must adhere to local building codes.

7. Preventing Future Foundation Problems

While it’s impossible to prevent all foundation issues, these steps can help minimize the need for future leveling:

• Regular Inspections: Inspect your crawl space annually, especially after heavy rain or flooding.
• Control Moisture: Install drainage systems and vapor barriers to prevent moisture from accumulating.
• Maintain Proper Drainage: Ensure water flows away from the foundation using gutters, downspouts, and sloping soil.
• Install Termite Protection: Termites can quickly cause damage to wooden beams, so regular pest control is essential.

8. Choosing a Foundation Repair Contractor in New Orleans

When selecting a contractor, consider the following:

• Experience and Local Knowledge: Choose a company with experience in New Orleans’ unique environmental conditions.
• Licensing and Insurance: Verify that the contractor is licensed and insured for foundation repairs.
• References and Reviews: Look for reviews and ask for references to ensure past clients were satisfied with their work.
• Detailed Estimates: Request a written estimate that details the costs of labor, materials, and any recommended upgrades or preventative measures.

Leveling a pier and beam foundation in New Orleans is a necessary investment to ensure your home remains stable and safe. Understanding the causes of foundation problems, recognizing the signs of damage, and knowing what to expect during the leveling process can help you make informed decisions.
